SENVAC SDE 3000/5000/7000
SENVAC SDE series is recommended for dust, fume and smoke extraction from various generation areas through on source and connected pipe systems.
Our machines can also easily integrate with process area's manufacturing machines for entire Production facilities. The unique design can cover many applications in single machine.
The filter chamber guarantees uniform distribution of the dust load throughout the filter, low pressure loss and low flow speed. The filter can be cleaned offline too.
The filter is cleaned by means of pulse-jet, which cleans the filter during operation and after the device has been switched off. This ensures consistent extraction performance with low compressed air consumption.
Ensures maximum extraction performance
| Model | Units | SDE 3000 | SDE 5000 | SDE 7000 |
|---|---|---|---|---|
| Power | KW/HP | 3.7/5.5 | 5.5/7.5 | 7.5/10 |
| Voltage | Volts | 230/400 | 230/400 | 230/400 |
| Frequency | Hz | 50 | 50 | 50 |
| Ambient Temperature | °C | 50 | 50 | 50 |
| Airflow | 700 m3/h | 3000 | 5000 | 7000 |
| Vacuum Pressure | mm of WC | 250 | 250 | 250 |
| Filter Cartridge | Nos. | 9 | 16 | 16 |
| Length of the Cartridge | mm | 750 | 750 | 985 |
| Filter Surface Area | sq.m | 42.3 | 75.2 | 99.2 |
| Air Load on Filter | m3/m2/h | 71 | 66.5 | 70.6 |
| Filter Type | Cartridge | Cylindrical | Cylindrical | Cylindrical |
| Filter Cleaning Method | Pulse Jet | Automatic | Automatic | Automatic |
| Filter Efficiency | Microns | 99% | 99% | 99% |
| Compressed Air Required(Free from Oil/Water) | Bar | 4 to 6 | 4 to 6 | 4 to 6 |
| Collection Container | Type | Bin | Bin | Bin |
| Container Capacity | Litres | 50 | 50 | 50 |
| Installation | Area | Indoor | Indoor | Indoor |
| Noise Level | dbA | 78 | 78 | 78 |
| Protection Class | - | IP55 | IP55 | IP55 |

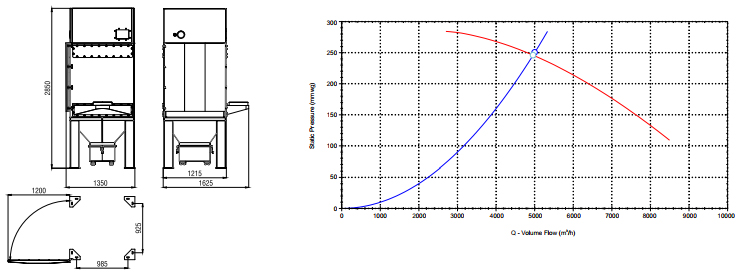

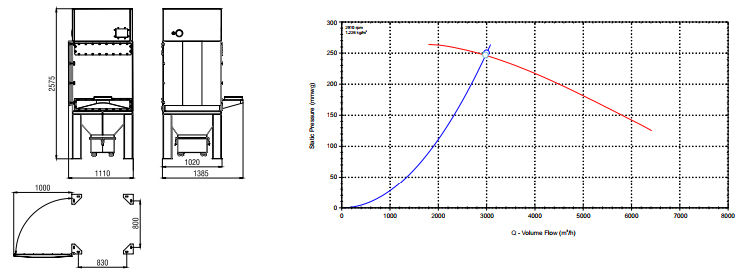

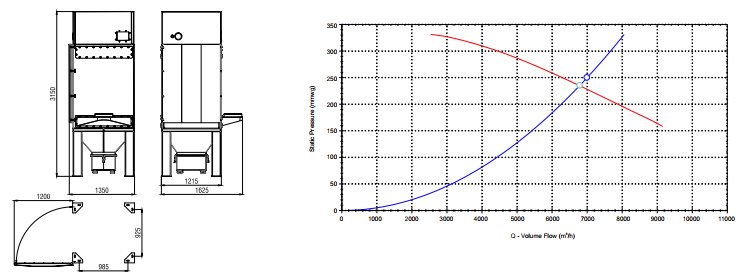

| Dimensions (LxWxH) | mm | 1110 x 1385 x 2575 | 1350 x 1625 x 2850 | 1350 x 1625 x 3150 |
