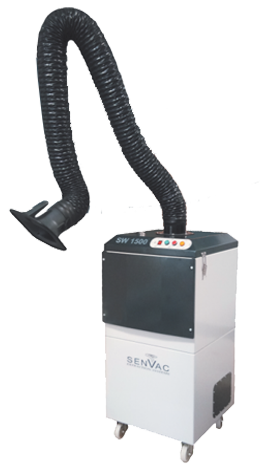

SENVAC SW 1500 / 3000

Welding fume extractor is exclusively designed for fume/dust from welding, laser, plasma cutting in industrial applications.

  • Flexible arm is equipped with 360 degree rotating and length of 3 metres.
  • High filtration efficiency.
  • Easy to position in application areas.
  • Equipped with three layered filter system to avoid the effect of flame with safer, durable and more reliable.
  • It can suck exactly from the source which makes best fume collection efficiency.
  • Technical Specifications
Model Units SW 1500 (S) SW 3000 (D)
Power KW/HP 1.5/2 3/4
Voltage V 400 400
Frequency Hz 50 50
Max. Airflow m3 /hr 1500 3000
Max. Arm Length Mtrs 3 2 x 3
Phase - 3 Phase 3 Phase
Filter Type - PTFE Cartridge PTFE Cartridge
Filter Surface Area sq. m 10 20
Filter Cleaning System Automatic Pulse Jet Cleaning Automatic Pulse Jet Cleaning
Filter Efficiency 99.97% 99.97%
Noise Level dbA 72 75
