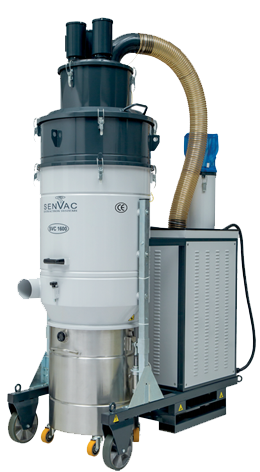

SVC 600/800/1000/1600 – AC/M

SENVAC SVC Series is good to recommend for collecting dust and fumes from various generation areas through on source or from the floor both accessible and inaccessible area with wheels.

Our machines can also easily integrate with process area's manufacturing machines for entire Production facilities. The unique design can cover many applications in a single machine.

Application Range:

  • Automobile
  • Cement & Minerals
  • Composite & Plastic
  • Engineering Industries
  • Food Processing
  • Foundry
  • Metal Work like Welding, Plasma & Laser Fume
  • Pharmaceutical Industry
  • Custom OEM Application

Benefits:

  • Outstanding Suction Power.
  • High Performance Extraction for Dust/Fume.
  • Low operating costs with cleanable long life filter cartridge.
  • Compact design, minimal space requirement.

Features

  • Filter Chamber

    The filter chamber guarantees uniform distribution of the dust load throughout the filter, low pressure loss and low flow speed through out the filter. The filter can be cleaned offline and online too

  • HEPA Filter

    HEPA Filter has high filter surface area. It is made up of paper medium with rigid construction up to the efficiency of 99.93%.

  • High Efficiency Side Channel Blower

    Ensures Maximum Extraction Performance.

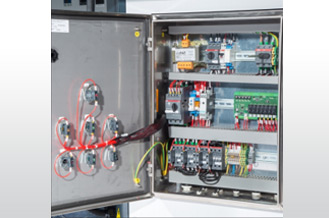

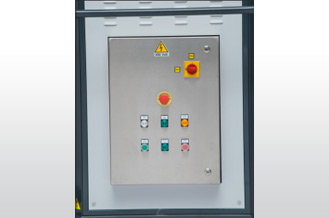

Newly Designed Control Unit

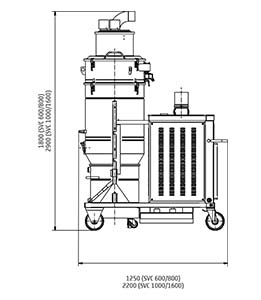

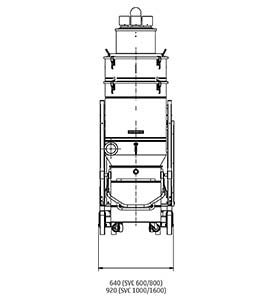

SVC 600/800/1000/1600 – AC/M Dimensions & Performance Curve

  • Different Types of Filters
  • Technical Specifications
  • Class L Filter for low risk application, efficiency 99%
  • Class H Filter for fine or toxic dust, efficiency 99.995% - 0.18 µ
  • Class M Filter, efficiency >= 1µ
  • Polyster Aluminium coated antistatic filter, efficiency 99%.
  • PTFE - Poly Tetra Fluoro Ethylene, film cover that facilitate the detachment of wet, foamy or muddy materials from the filter
Model Units SVC 600 SVC 800 SVC 1000 SVC 1600
Power KW/HP 7.5/10 12.5/17 18.5/25 25/33
Voltage V 400/3 400/3 400/3 400/3
Frequency Hz 50 50 50 50
Max. Airflow m3/h 750 1100 1400 2050
Max. Vacuum Pressure mm.H20 4000 4000 4400 4500
Capacity @ 20 Kpa - 500 m3/h 700 m3/h 800 m3/h 1500 m3/h
Capacity @ 15 Kpa - 600 m3/h 800 m3/h 1000 m3/h 1600 m3/h
Collection Container Lt 160 160 220 220
Suction Inlet mm 120 120 120 120
Noise Level dbA 72 75 77 78
Protection Class IP 55 65 65 65
Dimensions (LxWxH) cm 152 x 68 x 180 152 x 68 x 180 92 x 220 x 220 92 x 220 x 220
Weight Kg 200 220 660 805
Automatic Filter Cleaning with Cartridge Filter (AC)
Filter Cartridge Nos 4 4 4 4
Filter Surface Area Sq.m 10.6 10.6 26 26
Air Load on Filter m3/m2/h 71 104 53 79
Filter Media Polyester Polyester Polyester Polyester
Filter Class M M M M
Filter Cleaning Method Auto Pulse Jet Auto Pulse Jet Auto Pulse Jet Auto Pulse Jet
Filter Efficiency 99.7% 99.7% 99.7% 99.7%
Manual Filter Cleaning with Filter Bag (M)
Filter Surface Area Sq.m 5.2 10.35 12 12
Air Load on Filter m3/m2/h 144 106 116 170
Filter Media Polyester Polyester Polyester Polyester
Filter Class M M M M
Filter Cleaning Method Manual Manual Manual Manual
Filter Efficiency 99.7% 99.7% 99.7% 99.7%
