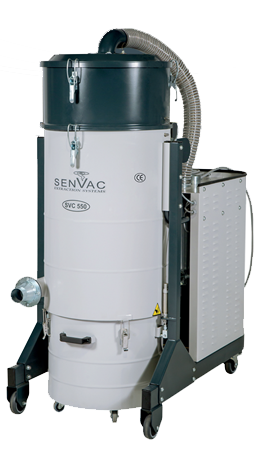

SVC 300/550 AC

SENVAC SVC Series is good to recommend for collecting dust and fumes from various generation areas through on source or from the floor both accessible and inaccessible area with wheels.

Our machines can also easily integrate with process area's manufacturing machines for entire Production facilities. The unique design can cover many applications in a single machine.

Application Range:

  • Automobile
  • Cement & Minerals
  • Composite & Plastic
  • Engineering Industries
  • Food Processing
  • Foundry
  • Metal Work like Welding, Plasma & Laser Fume
  • Pharmaceutical Industry
  • Custom OEM Application

Benefits:

  • Outstanding Suction Power.
  • High Performance Extraction for Dust/Fume.
  • Low operating costs with cleanable long life filter cartridge.
  • Compact design, minimal space requirement.

Features

  • Filter Chamber

    The filter chamber guarantees uniform distribution of the dust load throughout the filter, low pressure loss and low flow speed through out the filter. The filter can be cleaned offline and online too.

  • HEPA Filter

    HEPA Filter has filter surface area. It is made up of paper medium with rigid construction up to the efficiency of 99.93%.

  • High Efficiency Side Channel Blower

    Ensures Maximum Extraction Performance

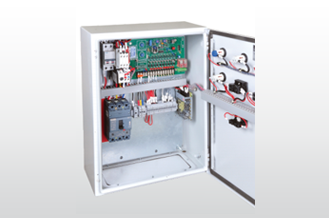

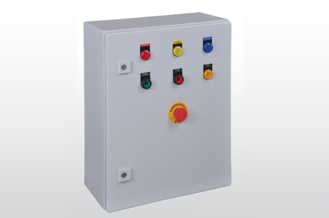

Newly Designed Control Unit

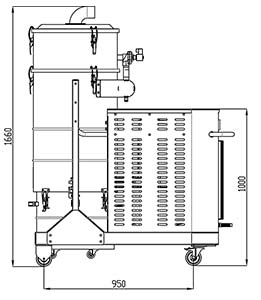

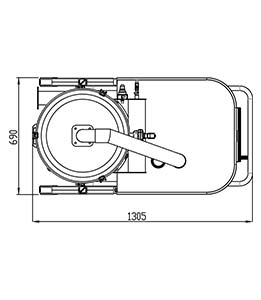

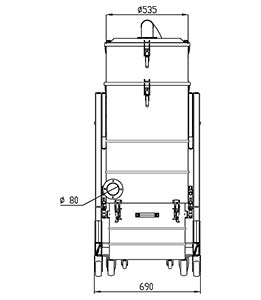

SVC 300/550 AC Dimensions & Performance Curve

  • Different Types of Filters
  • Technical Specifications
  • Polyester, 10 m2 with 99.9% efficiency. Dust Class 'M' (DIN EN 60335-2-69)
  • Polyester Antistatic by aluminium finishes, 10 m2 with 99.9% efficiency. Dust Class 'M' (DIN EN 60335-2-69)
  • Polyester PTFE coating, 10 m2 with 99.9% efficiency. Dust Class 'M' (DIN EN 60335-2-69)
  • Polyester ePTFE membrane, 10 m2 with 99.9% efficiency. Dust Class 'M' (DIN EN 60335-2-69)
Model Units SVC 300 AC SVC 550 AC
Power KW/HP 3/4 5.5/7.5
Voltage V 400/3 400/3
Frequency Hz 50 50
Max. Airflow m3/h 300 550
Max. Vacuum Pressure mm of H2O 3000 3000
Filter Cartridge Nos. 1 1
Filter Surface Area sq.m 10 10
Air Load on Filter m3/m2/h 30 55
Filter Type - Polyester Polyester
Filter Cleaning Method - Automatic Pulse Jet Cleaning System Automatic Pulse Jet Cleaning System
Filter Efficiency - 99.9% 99.9%
Collection Container Lt 70 70
Suction Inlet mm 80 80
Noise Level dbA 74 76
Protection Class IP 55 55
Dimensions (LxWxH) cm 180 x 66 x 140 180 x 66 x 140
Weight kg 124 146
