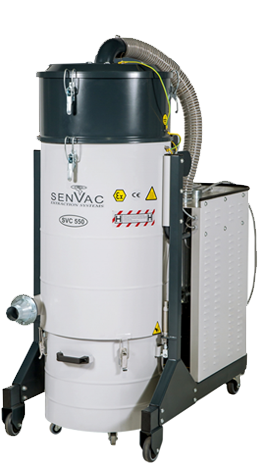

SVC 300/550 AC ATEX
SENVAC SVC ATEX Series is good to recommend collecting the compostable dust from the generation area through on source or from the floor both accessible area with or without wheels. The vacuum system self protected explosion proof designed as per ATEX series & certified according to the ATEX Zone 21 & ATEX Zone 22.
Our machines can also easily integrate with process area's manufacturing machines for entire Production facilities. The unique design can cover many applications in a single machine.
The filter chamber guarantees uniform distribution of the dust load throughout the filter, low pressure loss and low flow speed through out the filter. The filter can be cleaned offline too. The complete filter system grouped as per Atex norms
HEPA Filter has high filter surface area. It is made up of paper medium with rigid construction up to the efficiency of 99.93%.
Ensures Maximum Extraction Performance
| Model | Units | SVC 300 ATEX | SVC 550 ATEX |
|---|---|---|---|
| ATEX Zone 21 | Marking | Ex II 1/2D IIIC IP65 T135°C | Ex II 1/2D IIIC IP65 T135°C |
| ATEX Zone 22 | Marking | Ex II 1/3D IIIB IP65 T135°C | Ex II 1/3D IIIB IP65 T135°C |
| Power | KW/HP | 3/4 | 5.5/7 |
| Voltage | V | 400/3 | 400/3 |
| Frequency | Hz | 50 | 50 |
| Max. Airflow | m3/h | 300 | 550 |
| Max. Vacuum Pressure | mm of H2O | 2800 | 2800 |
| Filter Cartridge | Nos | 1 | 1 |
| Filter Surface Area | sq.m | 10 | 10 |
| Air Load on Filter | m3/m2/h | 50 | 55 |
| Filter Type | - | Polyester | Polyester |
| Filter Cleaning Method | - | Automatic Pulse Jet Cleaning System | Automatic Pulse Jet Cleaning System |
| Filter Efficiency | - | 99.7% | 99.7% |
| Collection Container | Lt | 70 | 70 |
| Suction Inlet | mm | 80 | 80 |
| Noise Level | dbA | 76 | 76 |
| Protection Class | IP | 65 | 65 |

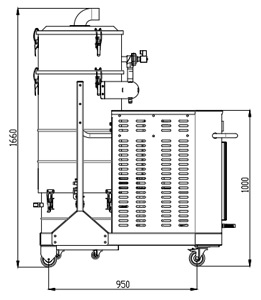

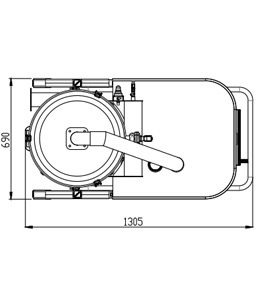

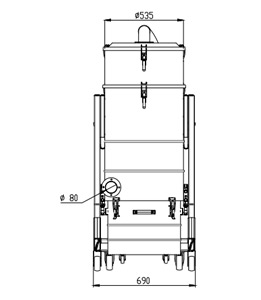

| Dimensions (LxWxH) | cm | 180 x 66 x 140 | 180 x 66 x 140 |
| Weight | kg | 124 | 124 |
