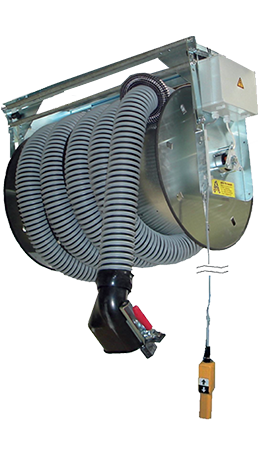

Hose Reels

The standard hose reel is capable of holding 7.5m of exhaust gas hose.
The reel rotates via two maintenance-free bushings. Bushings are made oflow-friction material

Hose Reel Frame

  • The hose reel frame is composed of zinc-plated steel. Each member of
    the frame features a thickness ofno less than 4mm.
  • All hardware is zinc-plated. The hose reel drum is constructed from
    1mm zinc-plated steel. Drum ends are made of 2.5mm aluminium sheet
    with a non-abrasive rubber edge strip.

Hose Reel Motor

  • Motorized Hose reels feature a compact cylindrical control motor
    with thermal overload protection.

Hose Reels in Chart Above Include:

  • Ø200mm / 10m ofhose that is temperature rated to +180°C • Nozzle with clamping device

Available Accessories

  • Pendant Remote (Only Motorized) – Hose in length of7.5m up to 12.0m
  • Radio Remote (Only Motorized) (temperature resistant up to +650°C)
  • Shut-OffDamper Ø224 mm
  • Hose in length of7.5m up to 12.0m (temperature resistant up to +650°C)

Components of Hoses

  • Part No Diameter
    964-075 Ø75mm
    964-100 Ø100mm
    964-125 Ø125mm
    964-150 Ø150mm
    964-200 Ø200mm

    TR up to +180°C

    • Made ofTPE coated polyester fabric
    • Extremely wear resistant
    • Temperature rating up to 180 °C
  • Part No Diameter
    972-100 Ø100mm
    972-125 Ø125mm
    972-150 Ø150mm
    972-200 Ø200mm

    HT 300 up to +300°C

    • Crush-proofhigh quantity rubber hose
    • Temperature rating up to 300 °C
    • Highly flexible
  • Part No Diameter
    981-100 Ø100mm
    981-125 Ø125mm
    981-200 Ø150mm
    981-200 Ø200mm

    HT 500 up to +500°C

    • Double layered construction inner layer heat resistant & impregnated glass fabric
    • Outer layer is a specially coated fabric designed to withstand high temperature
    • Temperature rating upto 500 °C
    • Flame resistant for exhaust gases
  • Part No Diameter
    984-100 Ø100mm
    984-125 Ø125mm
    984-150 Ø150mm
    984-200 Ø200mm

    HT 800 up to +800°C

    • Double layered construction inner layer heat resistant & impregnated glass fabric
    • Outer layer is a specially coated fabric designed to withstand high temperature
    • Temperature rating up to 800 °C
    • Flame resistant for exhaust gases
  • Part No Diameter
    987-200 Ø200mm

    HT 1100 up to +1100°C

    • Double layered construction inner layer heat resistant & impregnated glass fabric
    • Outer layer is a specially coated fabric designed to withstand high temperature
    • Temperature rating upto 1100 °C
    • Flame resistant for exhaust gases

Components of Nozzles

  • Nozzles with Clamping Device - Type 936 - (made of neoprene)

    Model Weight Hose A B C
    936-075 2.0kg Ø75mm 155 85 75
    936-100 1.9kg Ø100mm 155 85 100

    Neoprene body with opening for testing device

    • Hose connection bent upwards 60°
    • Nozzle comes with protection grid

  • Nozzles with Clamping Device - Type 935 - (made of neoprene)

    Model Weight Hose A B C
    935-100 2.4kg Ø100mm 220 120 100
    935-125 2.3kg Ø125mm 220 120 100
    935-150 2.4kg Ø150mm 220 120 100

    Neoprene body with opening for testing device

    • Hose connection bent upwards 60°
    • Nozzle comes with protection grid

  • Nozzles with Clamping Device - Type 934 - (made of neoprene)

    Model Weight Hose A B
    934-100 2.7kg Ø100mm 220 170
    934-125 2.7kg Ø125mm 220 170
    934-150 2.6kg Ø150mm 220 170
    • Neoprene body with internal protection grid for full-sized trucks

  • Nozzles with Clamping Device - Type 932 - (made of aluminium)

    Model Weight Hose A B
    932-100 1.2kg Ø100mm 100 95
    932-125 1.6kg Ø125mm 125 118
    932-150 1.7kg Ø150mm 150 143
    932-200 2.5kg Ø200mm 200 190
    • Aluminium body with internal protection grid for full-sized trucks and constant high temperatures

  • Nozzles with Clamping Device- Type 932 - (made of stainless steel)

    Model Weight Hose A B
    932-126 2.1kg Ø125mm 125 150
    932-151 2.4kg Ø150mm 150 200
    932-201 3.5kg Ø200mm 200 250
    932-251 4.3kg Ø250mm 250 300
    • Stainless steel body with internal protection grid for full-sized trucks and constant high temperatures.

  • Conical Nozzle - Tight-Fitting - Type 930 - (made of neoprene)

    Model Weight Hose A B
    930-065 0.6kg Ø65mm 65 65
    934-075 0.7kg Ø75mm 75 75
    934-10 0.8kg Ø100mm 100 100
    • Neoprene slip-on nozzle with opening for cars with single-exhaust pipe.

  • Conical Nozzle - Tight-Fitting - Type 931 - (made of neoprene)

    Model Weight Hose A B
    931-125 1.1kg Ø125mm 125 125
    931-150 1.2kg Ø150mm 150 150
    • • Neoprene slip-on nozzle with opening for cars and trucks with single-exhaust pipe.

  • Conical Nozzle - Tight-Fitting - Type 921 - (made of neoprene)

    Model Weight Hose A B C
    921-065 0.8kg Ø65mm 65 110 70
    921-075 0.9kg Ø75mm 15 110 70
    921-100 1.0kg Ø100mm 100 110 70
    • Neoprene slip-on nozzle with opening for cars with double-exhaust pipe

  • High-Temperature Exhaust Gas Funnel on Stand - Type 1100 - E (made of stainless steel)

    Model Weight Hose A B C D
    1100-150E 9.0kg Ø150 150 200 300 800
    1100-200E 9.5kg Ø200 200 250 350 800

    Stainless steel construction with stand

    • Adjustable height
    • Use for high-temperature exhaust applications

  • Exhaust Gas Funnel on Stand - Type 1110 - (made of zinc-coated steel)

    Model Weight Hose A B C
    1110-100 7.0kg Ø100 100 150 800
    1110-125 7.5kg Ø125 125 200 800
    1110-150 8.0kg Ø150 150 250 800
    1110-200 8.5kg Ø200 200 300 800

    Made from zinc-coated steel sheet, with stand

    • Adjustable height
    • Use for high-temperature exhaust applications (up to +300°C)

  • For Trucks with Top Exhaust - Type 933 - 160 (made of zinc-coated steel) Type 933 - 160E (made of stainless steel)

    Model Weight A B C D
    933-160 9.0kg 2450 2000 Ø250 Ø150
    933-160E 9.0kg 2450 2000 Ø250 Ø150

    Made from zinc-coated steel sheet, with stand

    • Adjustable height
    • Use for high-temperature exhaust applications (up to +300°C)

  • For Trucks with Top Exhaust - Type 937 - 150 (made of aluminium)

    Model Weight A B C D
    937-150 13.0kg 2850 2500 240 x 200 Ø150

    Made from zinc-coated steel sheet, with stand

    • Adjustable height
    • Use for high-temperature exhaust applications (up to +300°C)

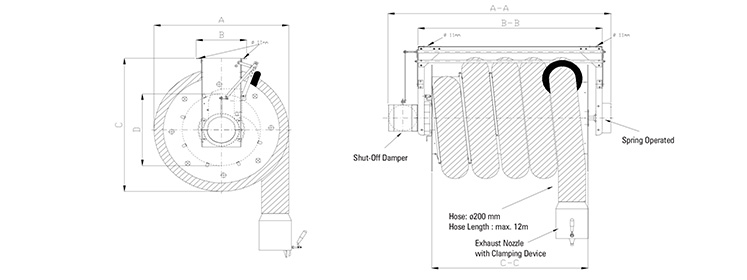

Stationary Manual / Motorized Hose Reel Ø200

  • Stationary Spring Hose Reel
  • Stationary Motorized Hose Reel
Type Weight A B C D A - A B - B C - C
ARF 100/7.5 44 Kg 670mm 388mm 785mm Ø450mm 1225mm 988mm 800mm
ARF 100/10.0 44 Kg 670mm 388mm 785mm Ø450mm 1225mm 988mm 800mm
ARF 125/7.5 44 Kg 720mm 388mm 810mm Ø450mm 1225mm 988mm 800mm
ARF 125/10.0 47 Kg 720mm 388mm 810mm Ø450mm 1425mm 1188mm 1000mm
ARF 150/7.5 44 Kg 770mm 388mm 835mm Ø450mm 1225mm 988mm 800mm
ARF 150/10.0 47 Kg 770mm 388mm 835mm Ø450mm 1425mm 1188mm 1000mm
ARF 200/7.5 71 Kg 827mm 390mm 1110mm Ø605mm 1725mm 1405mm 1200mm
Type Weight A B C D A - A B - B C - C
ARF 200/7.5 47 Kg 670mm 388mm 785mm Ø450mm 1255mm 988mm 800mm
ARE 100/10.0 47 Kg 670mm 388mm 785mm Ø450mm 1255mm 988mm 800mm
ARE 125/7.5 47 Kg 720mm 388mm 810mm Ø450mm 1255mm 988mm 800mm
ARE 125/10.0 50 Kg 720mm 388mm 810mm Ø450mm 1455mm 1188mm 1000mm
ARE 150/7.5 47 Kg 770mm 388mm 835mm Ø450mm 1255mm 988mm 800mm
ARE 150/10.0 50 Kg 770mm 388mm 835mm Ø450mm 1455mm 1188mm 1000mm
ARE 200/12.5 53 Kg 770mm 388mm 835mm Ø450mm 1655mm 1388mm 1200mm
ARE 150/15.0 56 Kg 770mm 388mm 835mm Ø450mm 1955mm 1688mm 1500mm
ARE 200/12.0 74 Kg 827mm 390mm 1110mm Ø605mm 1725mm 1388mm 1200mm
