Full Automatic Exhaust System – “with Horizontal Shifters”
Entrance Shifter
Hose Trolley Automatically Transfer
Hose Trolley in Starting Position

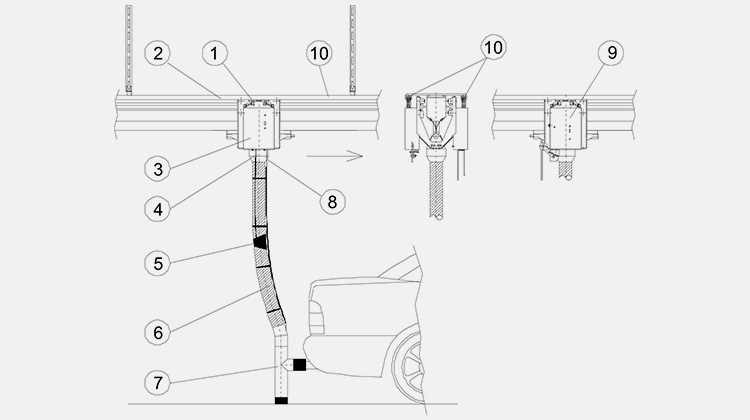

Clamping Exhaust Nozzle
Aluminium Slotted Suction Channel
Spiral Duct
Suction Fan

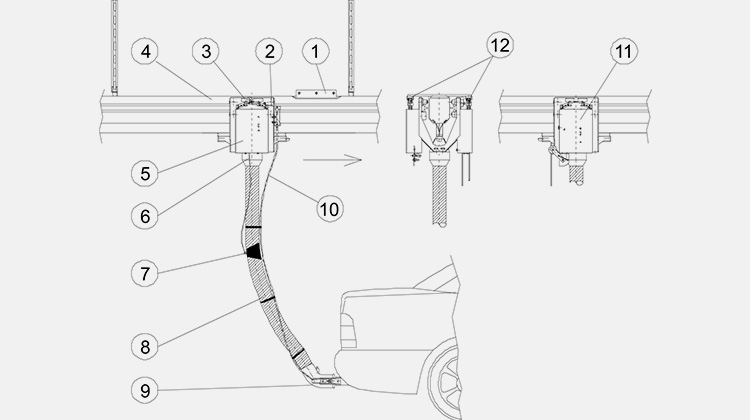

Automatic Release of the Exhaust Nozzle
Shifter to the Return Rail
Return Rail
Shifter for Maintenance
Maintenance Rail
Slotted Suction Channel
Slotted Suction Channelmade of extruded
Aluminiumwith neoprene sealing lips.
Any length available.
Rated temperature up to 150°C• Weight: ~13kg/m
Slotted Suction Channel - Bend
Any Radius from 4,5m
upwards available.
Slotted Suction Channel
Slotted Suction Channel - Bend
Return Track
Return Rail made of extruded Aluminium.
Any length available.
Weight: ~7,5kg/m
Return Rail - Bend
Available radius: 1200 / 1500mm
from 15° to 180°
Return Rail with Bus Bar
Return Rail - Bend with Bus Bar

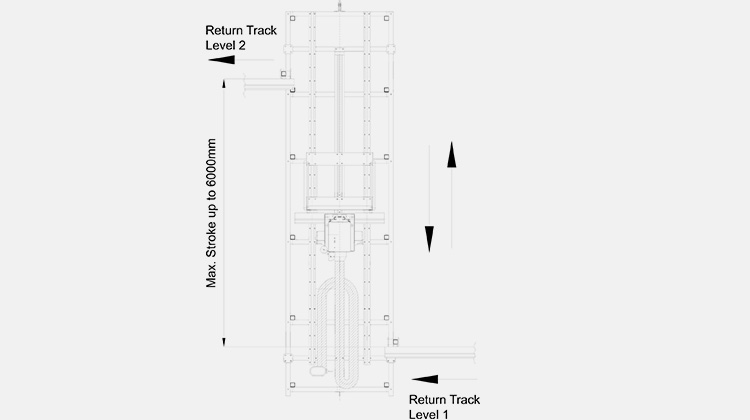

Vertical Shifter
Full Automatic Vertical Shifter ensure the transfer
of the hose trolleys between two return rails located
at different levels.
Facilitates an ergonomic installation into the
automotive factories.
Maximum safety due to two-ways locks, limit switches
and overload protection.

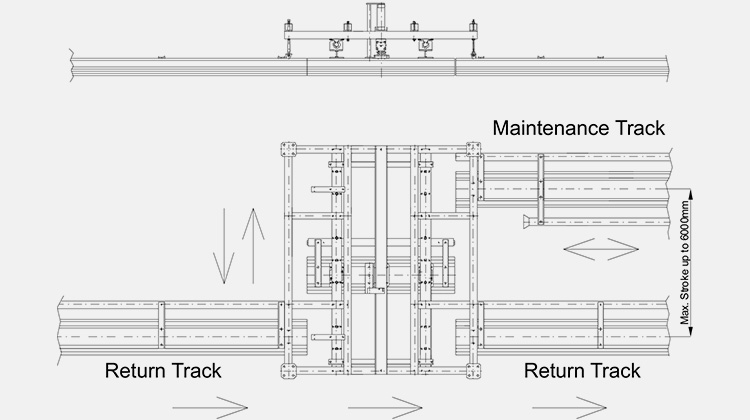

Horizontal Shifter
Full Automatic Horizontal Shifter ensure the transfer of the hose trolleys between
two or more suction ducts and/or return rails installed parallel to each other.
Maximum safety due to two-ways locks, limit switches and overload protection.

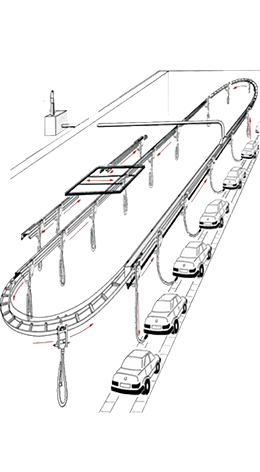

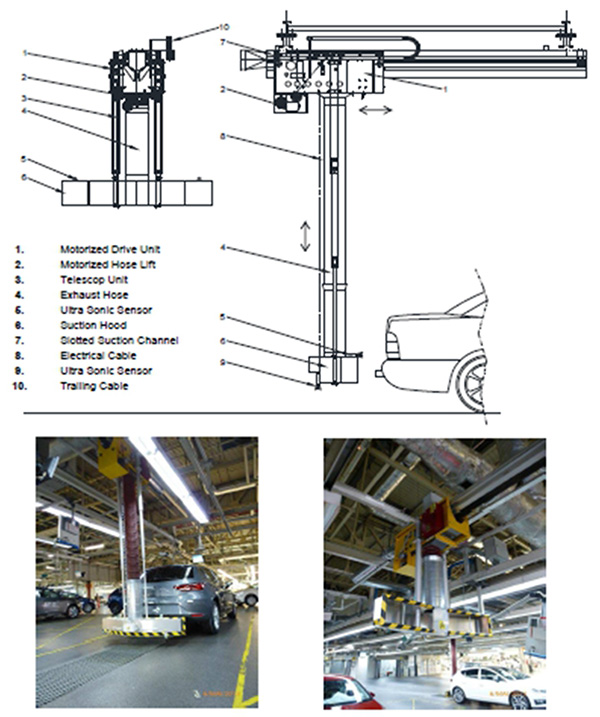

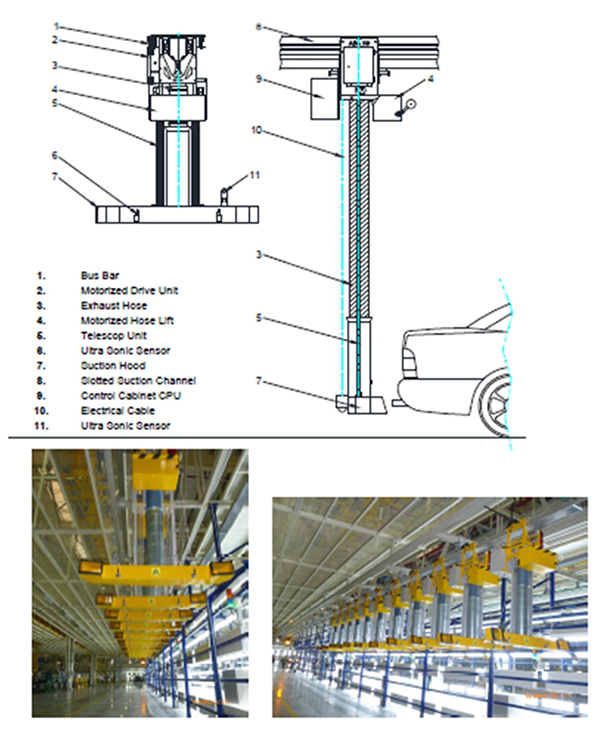

Automatic Rail System
